BMW S65 Forged Internals — I-Beam Rods & Pistons Kit
The BMW S65 4.0L naturally aspirated V8 is one of the most celebrated engines BMW M has ever built — the heart of the legendary E90/E92/E93 M3. While the stock internals handle the factory 414HP reliably, any serious power build — whether supercharged, turbocharged, or high-RPM naturally aspirated — demands stronger internals. Our S65 forged internals kit replaces the factory cast components with race-grade forged units rated for serious power on pump fuel, E30, or full E85.
What's Included:

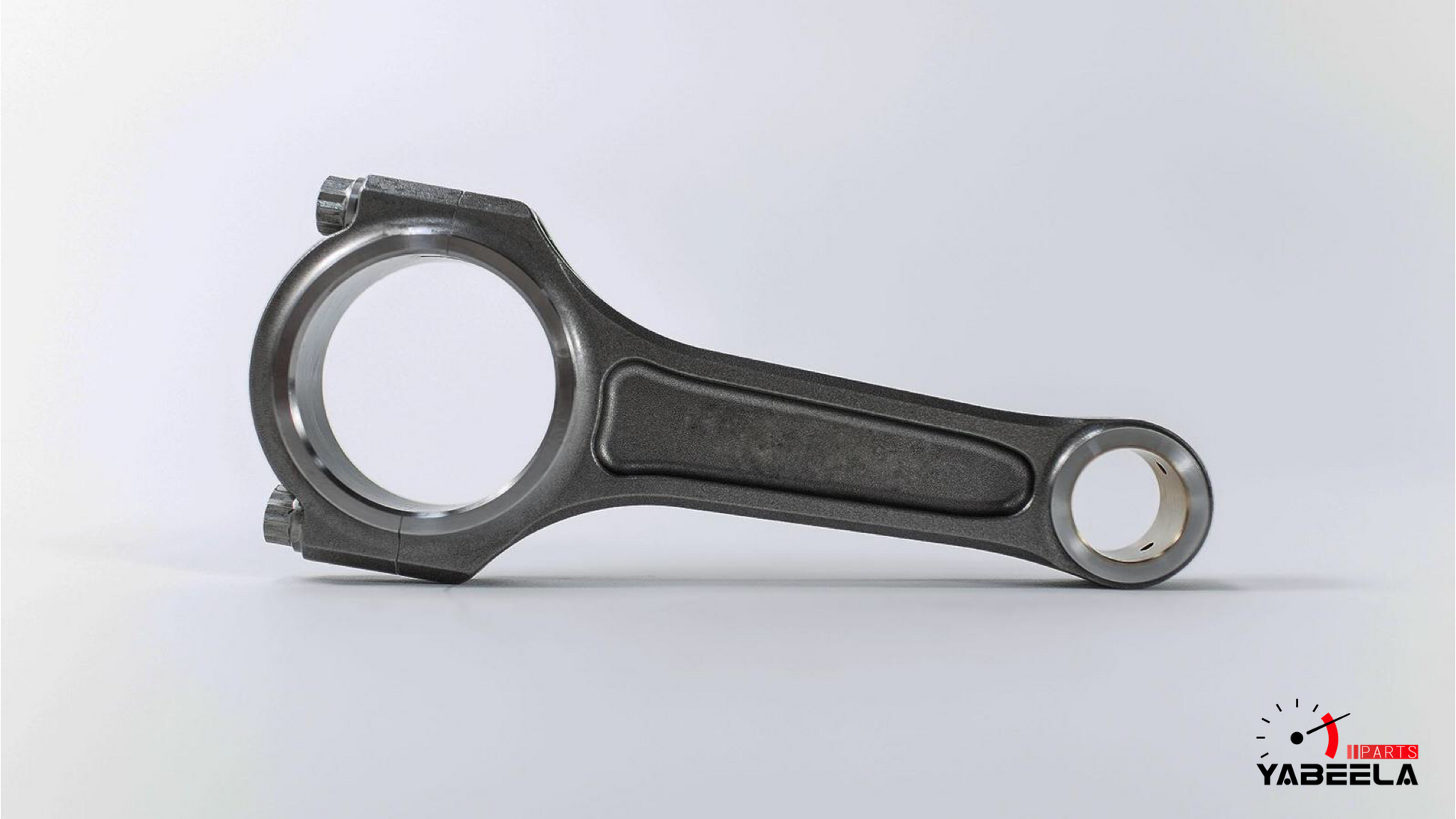

Forged connecting rods — 4340 aircraft-grade steel, I-beam design, 140.72mm centre-to-centre

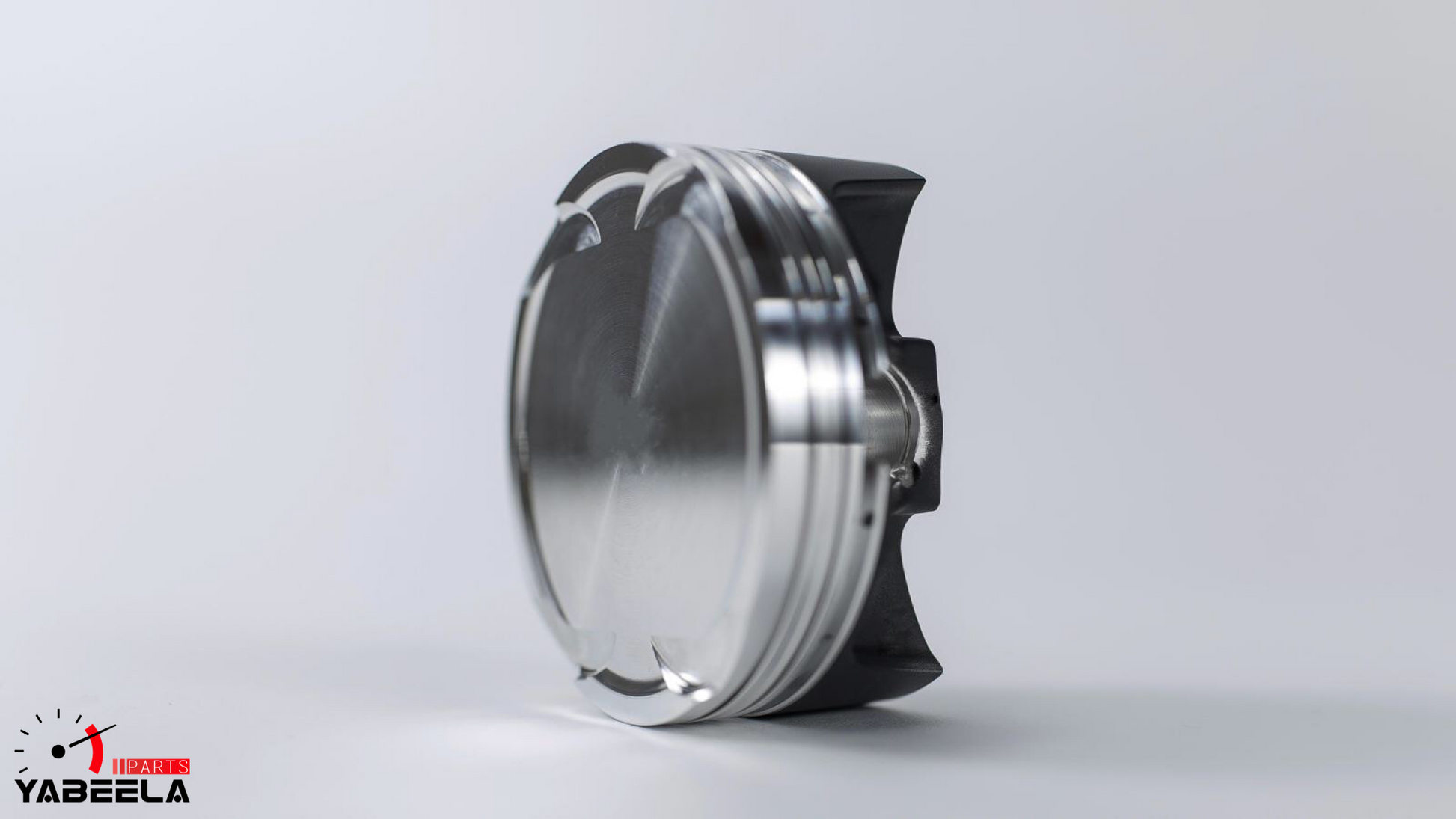

Forged pistons — CP or equivalent specification, 92.00mm bore (stock bore)
Compression Ratio: 12.0:1 (stock compression)
Pin Diameter: 21.00mm
Big-End Bore: 56.00mm
ARP 2000 rod bolts included — 220,000 PSI rated (3/8")
AMPCO 18 wrist pin bushings — superior wear and fatigue resistance
Balanced and matched set — within ±1g
Ring set included
Set of 8 (complete V8 set)
Power Capability:
Standard ARP 2000 configuration — 1,000HP capable (200HP+ per cylinder)
Optional ARP L19 upgrade — up to 260,000 PSI for extreme builds
Suitable for supercharged, turbocharged, and high-RPM NA builds
9,000+ RPM capable
Compatible Vehicles:
BMW M3 — E90 Sedan (2007–2013)
BMW M3 — E92 Coupe (2007–2013)
BMW M3 — E93 Convertible (2007–2013)
BMW M3 GTS — E92 (2010–2011) · S65B44 4.4L variant
All S65 variants — S65B40, S65B40A, S65B44
Why Upgrade the S65 Internals?
The stock S65 uses forged aluminium pistons and fracture-split connecting rods from the factory. While adequate for the naturally aspirated setup, forced induction builds or high-RPM endurance applications push the factory rods past their design limits. The stock rods are the first failure point — typically bending or failing at the big end under sustained high-boost or high-RPM operation. Upgrading to 4340 I-beam forged rods with ARP fasteners and matched forged pistons gives you a bottom end that can handle supercharger kits, turbo conversions, and sustained track abuse without compromise.
Engineering Details:
Shot-peened for stress relief
Multi-stage heat treated for maximum strength and fatigue life
CNC machined to ±0.001mm centre-to-centre tolerance
Magnaflux inspected for material consistency
Finite Element Analysis (FEA) optimised beam profile
Straight-cut pin end for increased durability (requires aftermarket pistons — included in kit)
Related Products
- BMW N55 Forged Internals — 1,500HP Rated | Pistons, Rods, Rings — $4999.00
- BMW B58 Forged Internals — 1,500HP Rated | Pistons, Rods, Rings — $4999.00
Frequently Asked Questions
How much does the BMW S65 Forged Internals | I-Beam Rods & Pistons cost?
The BMW S65 Forged Internals | I-Beam Rods & Pistons kit is $5,999.00 through YPG Motorsport with free worldwide shipping.
Are these drop-in replacements for the S65?
Yes. Direct drop-in replacement for factory S65 connecting rods and pistons. 92.00mm bore with 12.0:1 stock compression ratio. Set of 8 for the complete V8.
Do you ship forged internals worldwide?
Yes. Free worldwide shipping on all YPG Motorsport forged internals.
Why I-beam rods instead of H-beam for the S65?
The S65 is a high-revving V8 that thrives on RPM. I-beam rods are lighter and distribute loads more evenly at high RPM, making them the ideal choice for the S65's 8,300+ RPM operating range. They also provide better piston clearance in the compact V8 block.
