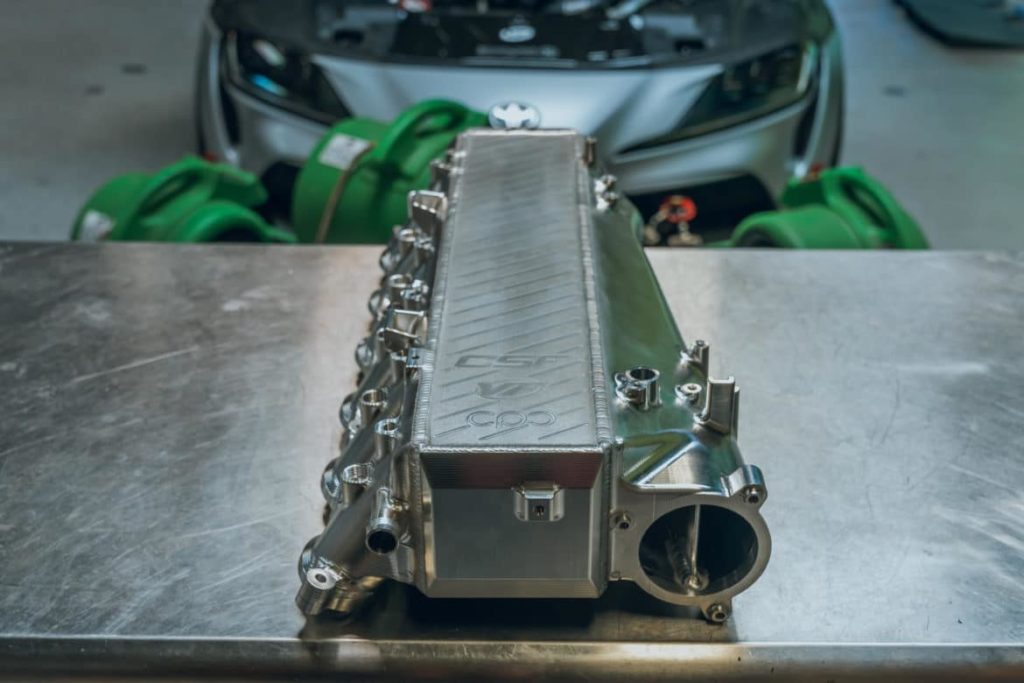

CSF is proud to announce its most advanced cooling system to date – the new Charge-Air Cooler Manifold for A90/A91 Toyota Supra and BMW G-Series (B58).
With well over 1,500 hours of design, prototype development, machining, and testing, CSF, along with partners VF Engineering (USA) and Custom Plenum Creations (Australia), has now brought a state-of-the-art CNC machined, high-performance Charge-Air Cooler Manifold to the B58 platform for Mk5 Supra and BMW models. This product solves what has been commonly known as a weak link of an otherwise impressive new engine platform.
With the larger and more efficient water-to-air intercooler performance, lower pressure drop across the system, included fuel rail, kit for top feed port injection, and several other industry-leading features, the CSF Super Manifold will allow B58 owners to maximize the performance of their vehicles and push the limits further than what has been previously possible with this new platform.
CSF’s Creates the Missing Link to Maximum B58 Performance
The newer 2nd gen B58 engine, found in the Mk5 Supra, has already been proven to be an incredible platform for performance enthusiasts – taking the performance and motorsports industry by storm in just a couple of years since its release. In a short amount of time, performance enthusiasts have already started to more than double the stock engine output – now pushing through 700whp, 800whp, and looking into the elusive 4 digit 1,000whp mark.
The OEM water-cooled charge air cooler intake manifold for the B58 engine is adequate in cars with little or no modifications, but starts to really show an apparent weakness in cars that have bolt-on modifications, turbo upgrades, increased fueling (such as port injection), and performance tuning. Also, the OEM intercooler system has been known to suffer from heat soak in demanding racing conditions such as time attack, endurance racing, drag racing, and drifting, as well as spirited driving on the street. This can cause the car to pull timing out of the engine due to high intake air temperatures (IATs), and then can cause “limp mode” once temperatures reach a certain threshold, as the vehicle’s ECU will cut power to protect the engine.
Design & Engineering
CSF conducted extensive testing on the dyno with R&D partner VF Engineering to ensure performance improvements before going into production with the new manifold. We performed over 50 dyno runs on the same car, on the same day, in relatively hot ambient conditions (~90°F) comparing the performance of the CSF Charge-Air Cooler Manifold to the OEM. Both the CSF and OEM cooler went through roughly 25 back-to-back dyno pulls every 30 seconds to measure the performance of the car overtime, resistance to heat soak, recovery time, and the effect on the turbo system duty cycle.
Summary Of Testing
Faster recovery of intake air temperatures
~30°F reduction of intake air temperatures (IAT’s) compared to OEM
Less pressure drop compared to OEM core
Puts less stress on the turbo system, allowing more boost to be made at higher targets
Avoided going into limp mode after prolonged demanding conditions, simulating motorsports use
On a stage 2 car with bolt-on upgrades, making ~400whp, comparing dyno run 19 between CSF and OEM, an increase of ~26whp and 11wtq were achieved
The performance increase and delta between CSF and OEM will be bigger as power is increased in the vehicle
Features
Utilizes a High Performance, Motorsports-Grade Bar/Plate Air-to-Water Intercooler CoreDouble the Capacity of the OEM Core (12 Rows of Water Cooling vs. OEM 6 Rows)
Significantly Lower Pressure Drop Across the Core Compared to OEM
Designed in SolidWorks Using Computational Fluid Dynamics (CFD)Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core
Improved slotted mounting holes on throttle body side for easier installation.
Easy Access to Spin-Off Oil Filter for Quick Oil Changes – No Need to Uninstall Manifold Every Oil ChangeCounter Balanced Design for Optimized Airflow
Integrated Sensor Pad with Three 1/8″ NPT Ports to Measure Additional Parameters
Included Optional Fuel Rail for Top Feed Port InjectionIndividual Port Injection Bungs on Each Cylinder Runner (Comes Pre-Plugged)
Individual 1/8″ NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth InjectionAllows for Even Spray Distribution and Control for Maximum Performance and Engine Protection
Individual 1/8″ NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Air-Bleeding of the System
Included KIYLEX Thermal Rejection Manifold Spacer*Made from KIYLEX® – A patented revolutionary high-performance final stage polymer
Acts as a thermal barrier that dissipates heat between the cylinder head and intake manifold
Proven to lower intake manifold temperatures by up to 15%
Lowers Intake Air Temps (IATs)
Plug-and-Play design, Requiring No Modifications to InstallIncludes Hardware and Installation Kit with Picture Diagrams Containing 32 Different Parts for Easy Installation
Comes Finished in Raw Billet Aluminum – Made by World-Leading Automotive Machinist Custom Plenum Creations in AustraliaOptional Powder-Coating and Thermal Rejection Finishes Available – CSF #8300C / #8300B
Disclaimer:
CSF pressure tests each #8300 manifold at 60-70 PSI for a period of 2-3 minutes during the Quality Control and Inspection process. The CSF manifold is not designed to operate above 60 PSI. Any users who chose to operate their vehicle with the CSF manifold over 60 PSI does so at their own risk. Operation at these pressure levels will void the CSF Limited 2 Year Warranty.
Applications:
*B85 (Gen 1 – B58B30M0 & B58M30O0) motor only. Some Model Years equipped with this motor vary by region
2017-2019 BMW F20/F21 M140i
2017-2021 BMW F22/F23 M240i
2016-2019 BMW F30/F31/F34 340i
2017-2020 BMW F32/F33/F36 440i
2017-2019 BMW G30/G31 540i
2017-2019 BMW G32 640i GT
2016-2019 BMW G11/G12 740i/740Li
2017-2019 BMW G01/G02 X3/X4 M40i
Available in raw billet aluminium, cerakote thermal black and custom powder coating and thermal rejection finishes.
Up to 30+ Custom Colours Available
Custom finishes carry a longer lead time, please include your finish of choice in the order comments.
Comes Finished in Raw Billet Aluminum – Made by World-Leading Automotive Machinist Custom Plenum Creations in Australia
Optional Powder-Coating and Thermal Rejection Finishes Available – CSF #8300C / #8300B
